Medical Full HD Endoscope Camera

Brand IKEDA
Product origin China

Medical Full HD Endoscope Camera YKD-9102 is a built-in LED cold light source camera, 1920X1080p full HD progressive scan, using SONY CMOS image sensing technology, providing a stable endoscopic field of vision, giving the surgeon an excellent visual experience. Make surgery easier and more refined.The endoscope camera adopts an all-metal design texture, Built-in CMOS full HD camera image sensor, The resolution up to 1080 lines, good stereoscopic, automatic backlight to avoid reflective and good stability.

Email

Download

It can be used for hysteroscope, laparoscopy, arthroscope, otolaryngoscope, intervertebral foramoscope, ureteroscope, etc., realizing a multifunctional use of a machine.

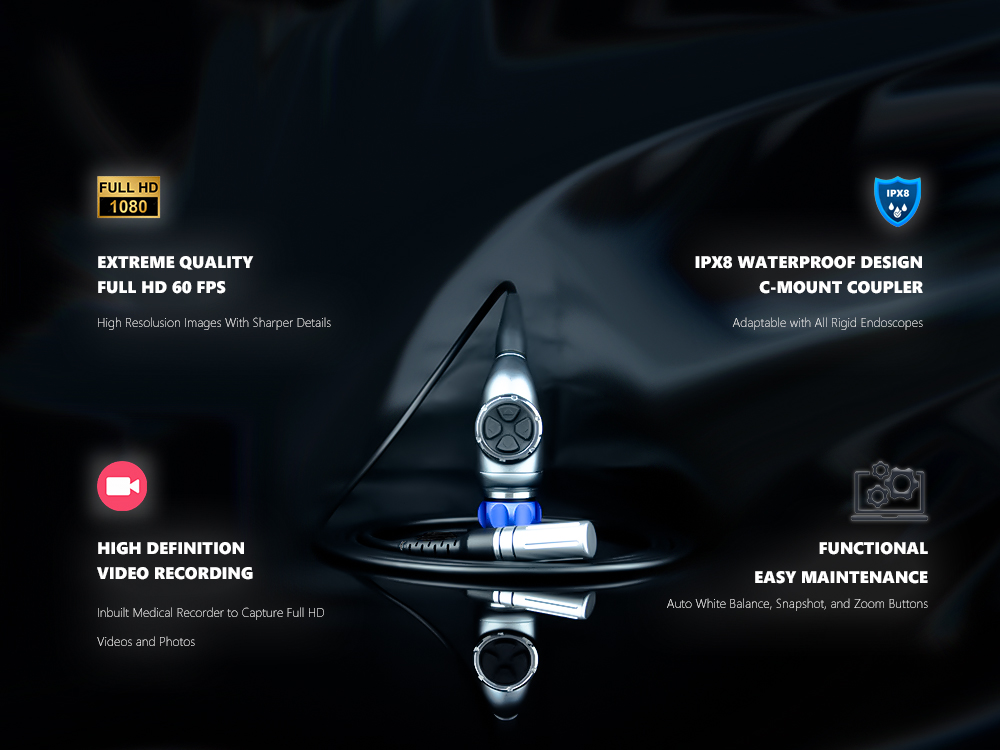

Medical Full HD Endoscope Camera YKD-9102 Product Features

1.The integrated design of LED cold light source and camera saves space and is convenient to carry.

2.The endoscope camera adopts an all-metal design texture, Built-in CMOS full HD camera image sensor, The resolution up to 1080 lines, good stereoscopic, automatic backlight to avoid reflective and good stability.

3.Camera head waterproof: IPX8,to prevent water from entering the camera head during the surgery.

4.Built-in USB full high-definition image storage, one-key switch photo/video function.

5.Video output:DVI, HDMI, VGA, CVBS.

6.Four buttons on the camera head, Photo capture/Video recording, Auto White balance, Zoom in, Zoom out .

7.Special anti-jamming processing,effectively handle the disturbing voltage produced by electrosurgical unit,avoiding influencing surgery images.

Medical Full HD Endoscope Camera Technical Parameters

Item ID	YKD-9102
Camera	2.1 Megapixels 1/2.8 Sony CMOS IPX8 Waterproof
Image Size	1920x1080P
Frame rate	(1920x1080)60fps
Scanning System	Progressive scanning
Features	White Balance/Zoom/Touch Buttons/USB Storage/Photo Capture Video Recording
Coupler	Full HD Optical C-mount Standard
LED Light Source	Built-in 80W LED White Light
Video Output	DVI, HDMI,CVBS
Minimum Illuminance	0.5LUX	Color Temperature	5100-7000K
Luminous Flux Value	≥800lm	Color Rendering Index	≥90
Monitor	/	AC Input	AC100-240V 50/60HZ
Video Recording	Build-In USB	Weight	5.05kg
White Balance	AWB & MWB	Dimension(mm)	360316118mm
Camera Control	WB & Photo Capture	SNR	50dB, Tolerance 20%

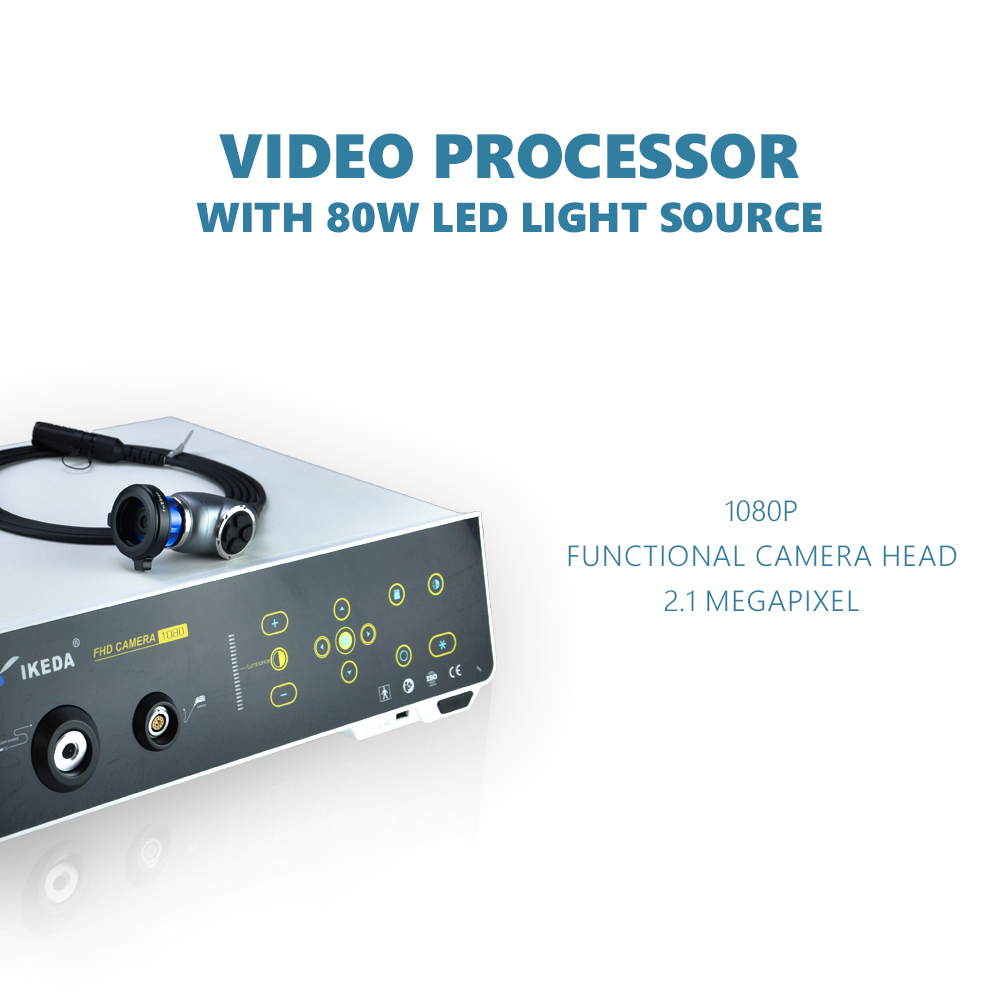

YKD-9102 video system center combines the LED light source, camera, and the processor in one box, defining a new way of simplicity in the OR. The intuitive touch panel with buttons enables easy and fast control with no interruption of the procedure.

3 in 1 : Camera 2.1MPixels+ LED light source + HD recorder.

Built-in USB : FHD Imaging storage.
IPX8 Water Proof Camera: We always ensure high price performance.

Optional Extra Aluminum Crate : easy to carry and save shipping cost.

Easy to operate and functional : Including Operating room switching, white balance, hue, video, USB stick, noise reduction, brightness, sharpness, saturation, contrast, image gain, gamma settings, Zoom in/Out, screen freeze and flip, resolution, output frame rate, etc.

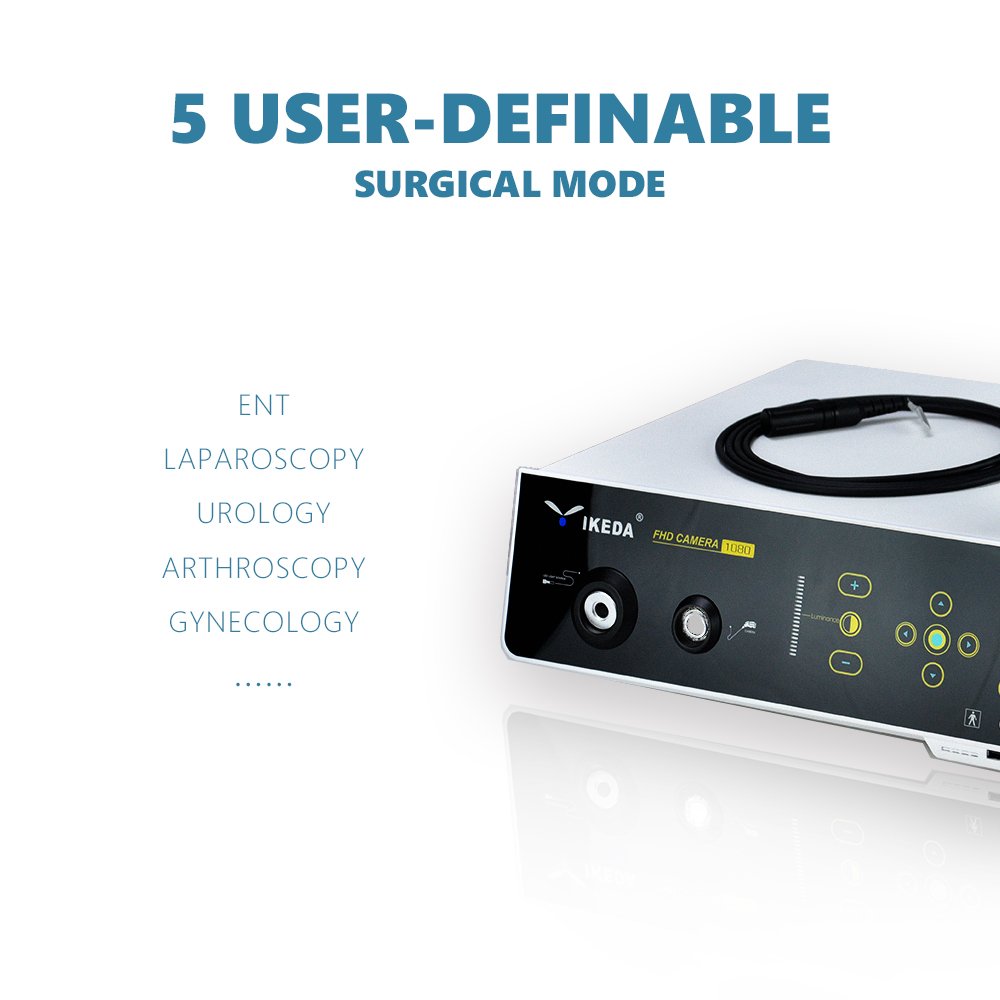

IKEDA imaging systems could be used for all fields in Hospital and Clinics, such as arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, proctoscope, sigmoidoscope, urology resectoscope, plastic surgery endoscope, laparoscope, ductoscopy, breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope, APP hernia repair, lacrimal passage, minimally invasive varicose veins, etc.
The camera is applied for both rigid and flexible fiberscopes, sucn as Sinuscope, Otoscope, Laryngoscope, Cystoscope, Arthroscope, Spine endoscope, hysteroscope, laparoscope...
The camera is fit for both diganosis and surgeries.

FULL HD CAMERA

We can define auto white balance as the adjustment that allows the camera to select the best white balance and color temperature settings for a given scene. IKEDA HD cameras are best at finding the correct white balance and

maximizing your clinic’s productivity at minimum costs.

RIGID ENDOSCOPES

Adaptable to wide range of rigid endoscopes such as laparoscopes, hysteroscopes, cysteroscopes, arthroscopes, sinuscopes. We offer you High Magnification, High Definition, High Definition plus and 4K endoscopes.

Enjoy rich, accurate colours and deeper contrasts with crisp detail. The smallest colour differences are accurately reflected, providing clearer, richer and more realistic colours.

IKEDA is always trying to achieve laparoscopic visibility that is equivalent to open surgery by providing HD video imaging systems with advanced technologies.

They introduce a range of new, easy-to-use technologies that aim to revolutionize the way medical disorders can be detected, characterized and sampled. We want to support every endoscopist. In every procedure. Every day.
