22" Medical Portable Integrated Endoscope System
22" Medical Portable Integrated Endoscope System
- 9122
- ENT/Urology/Laparoscopy/Arthroscopy
- Endoscopy
- 12.8" FHD 1080P
- 3-5 Years
Main Features
1. 1/2.8" SONY CMOS HD 1080P Camera
2. Integrated with 22 inch HD screen
3. Built-in 80W LED cold light source
4. HDMI and CVBS video output
5. Record and output 1080P HD image and video by HD video recording box
6, Suggest to be used for all rigid endoscopes, such as rigid (ENT) otoscope, laryngoscope, sinoscope, laparoscope, hysteroscope, cystoscope, arthroscope, spine endoscope etc.This model will have a good surgery performance.
Item ID | YKD-9122 | ||
Camera | 1/2.8 /Inch Full HD SONY CMOS | ||
Image Size | 1920x1080P/1305*977 | ||
Frame rate | (1920x1080)60fps | ||
Scanning System | Progressive scanning | ||
Pixels | 2,100,000 Pixels | ||
Resolution | 1080P | ||
LED Light Source | 80W, Cold Light Source | ||

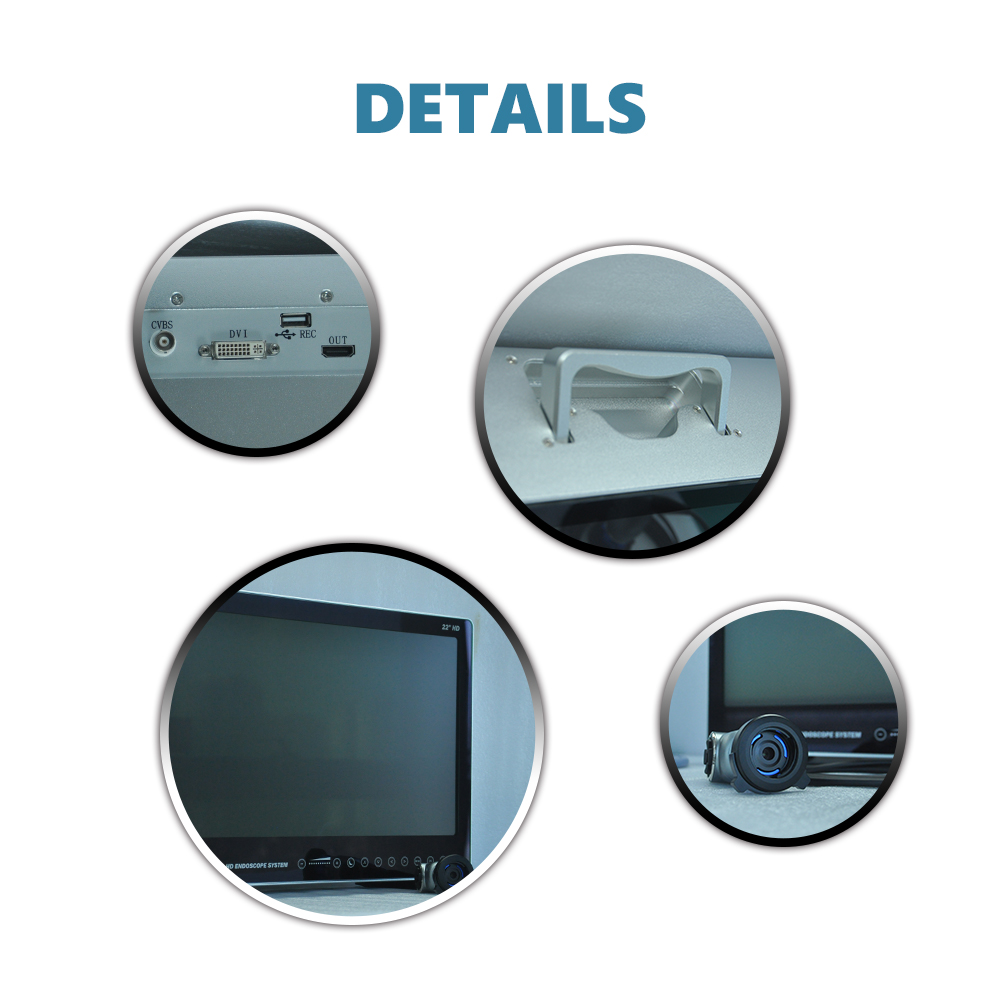

Video Output | DVI, HDMI,CVBS | ||
Minimum Illuminance | 0.5LUX | Color Temperature | 5100-7000K |
Luminous Flux Value | ≥800lm | Color Rendering Index | ≥90 |
/Monitor | 22 INCH | AC Input | AC100-240V 50/60HZ |
Video Recording | Build-In USB | Weight | 9.85kg |
White Balance | AWB & MWB | Dimension(mm) | 528*105*370 |
Camera Control | WB & Photo Capture | SNR | 50dB, Tolerance 20% |

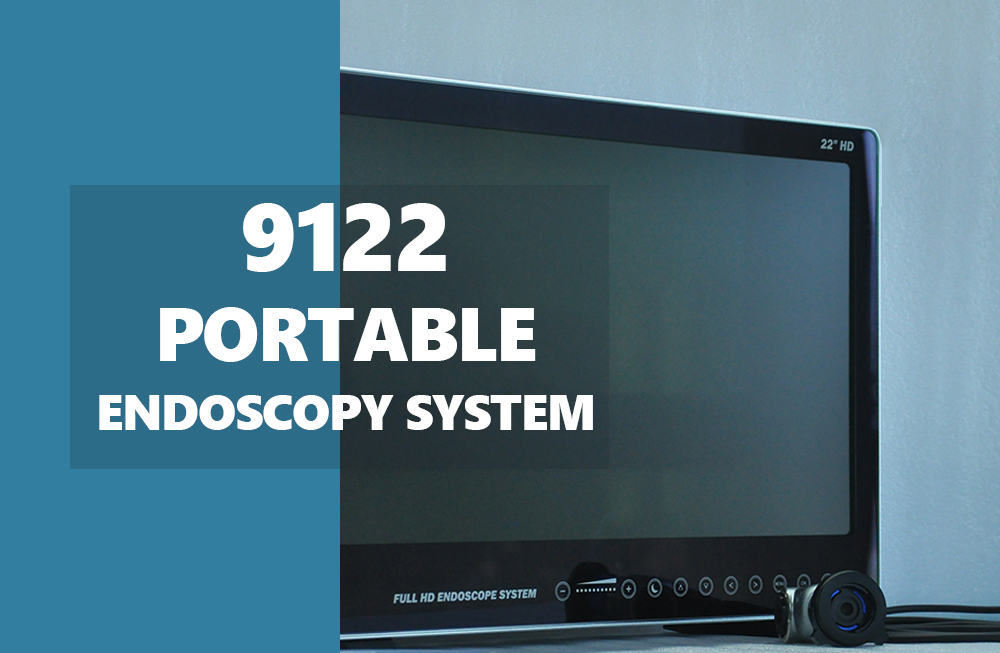

YKD-9122 video system center combines the LED light source, camera, monitor and the processor in one box, defining a new way of simplicity in the OR. The intuitive touch panel with buttons enables easy and fast control with no interruption of the procedure.
4 in 1 : Camera 2.1MPixels+ LED light source + monitor+ HD recorder.
Medical Grade HD Monitor : 22 Inch.
Built-in USB : FHD Imaging storage.IPX8 Water Proof Camera: We always ensure high price performance.
Optional Extra Aluminum Crate : easy to carry and save shipping cost.

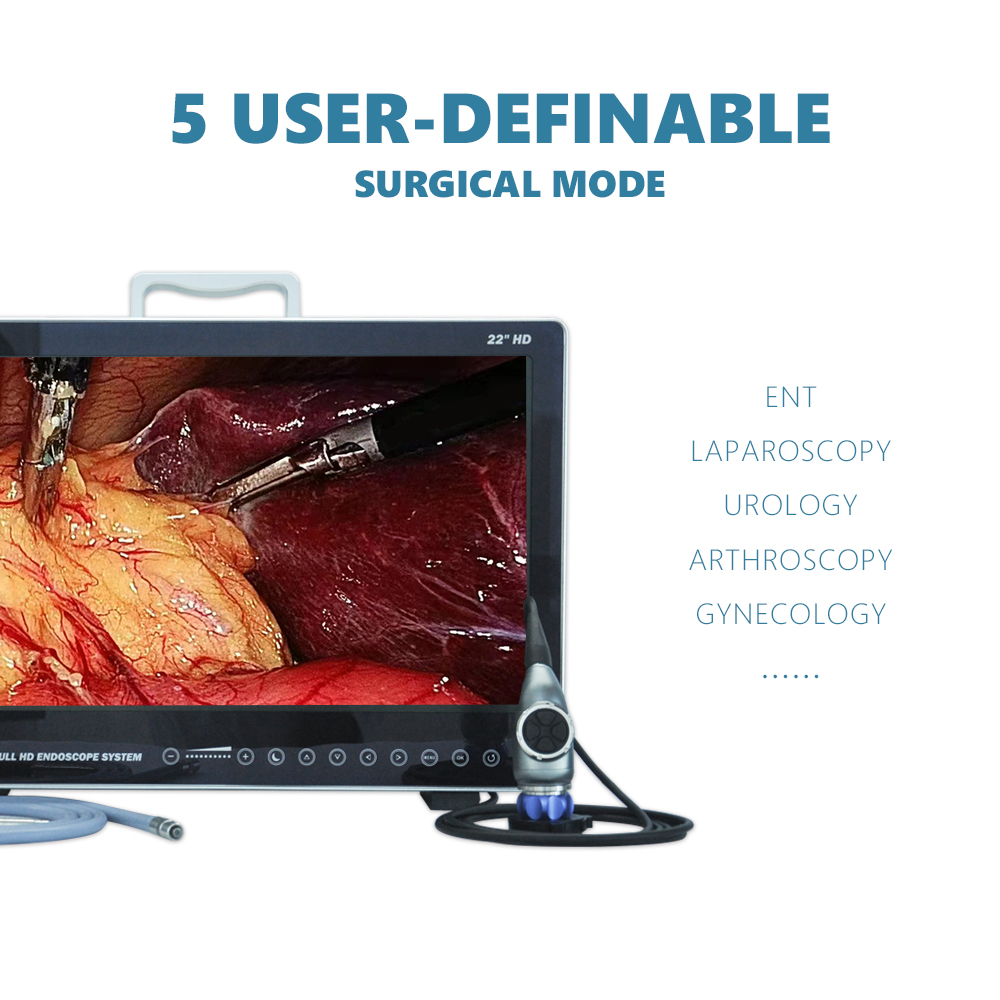

Easy to operate and functional : Including Operating room switching, white balance, hue, video, USB stick, noise reduction, brightness, sharpness, saturation, contrast, image gain, gamma settings, Zoom in/Out, screen freeze and flip, resolution, output frame rate, etc.
IKEDA imaging systems could be used for all fields in Hospital and Clinics, such as arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, proctoscope, sigmoidoscope, urology resectoscope, plastic surgery endoscope, laparoscope, ductoscopy, breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope, APP hernia repair, lacrimal passage, minimally invasive varicose veins, etc.
The camera is applied for both rigid and flexible fiberscopes, sucn as Sinuscope, Otoscope, Laryngoscope, Cystoscope, Arthroscope, Spine endoscope, hysteroscope, laparoscope...
The camera is fit for both diganosis and surgeries.
The camera is applied for both rigid and flexible fiberscopes, sucn as Sinuscope, Otoscope, Laryngoscope, Cystoscope, Arthroscope, Spine endoscope, hysteroscope, laparoscope...
The camera is fit for both diganosis and surgeries.

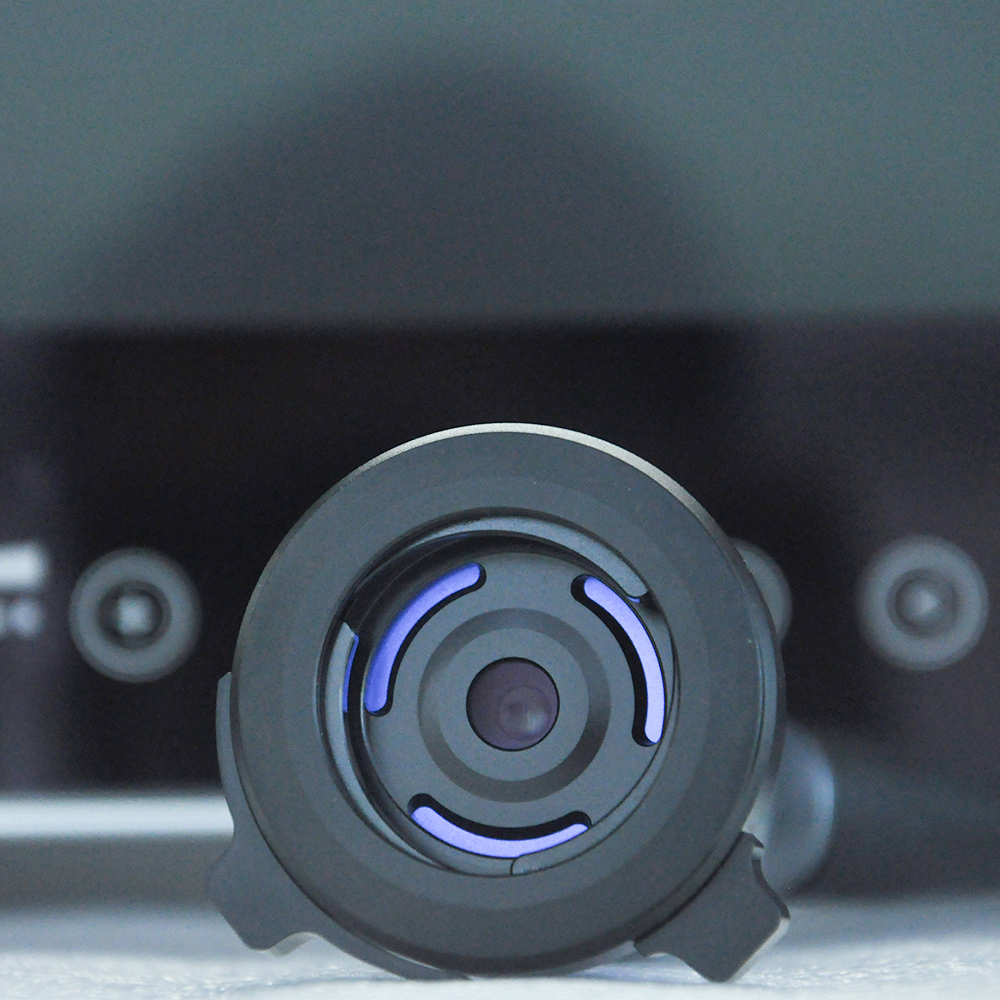

FULL HD CAMERA
We can define auto white balance as the adjustment that allows the camera to select the best white balance and color temperature settings for a given scene. IKEDA HD cameras are best at finding the correct white balance and
maximizing your clinic’s productivity at minimum costs.
RIGID ENDOSCOPES
Adaptable to wide range of rigid endoscopes such as laparoscopes, hysteroscopes, cysteroscopes, arthroscopes, sinuscopes. We offer you High Magnification, High Definition, High Definition plus and 4K endoscopes.
THE ULTIMATE IN BRILLIANCE
Enjoy rich, accurate colours and deeper contrasts with crisp detail. The smallest colour differences are accurately reflected, providing clearer, richer and more realistic colours.
IKEDA is always trying to achieve laparoscopic visibility that is equivalent to open surgery by providing HD video imaging systems with advanced technologies.
They introduce a range of new, easy-to-use technologies that aim to revolutionize the way medical disorders can be detected, characterized and sampled. We want to support every endoscopist. In every procedure. Every day.
They introduce a range of new, easy-to-use technologies that aim to revolutionize the way medical disorders can be detected, characterized and sampled. We want to support every endoscopist. In every procedure. Every day.
