15" All-in-one Portable Endoscope Camera System

Brand YIKEDA

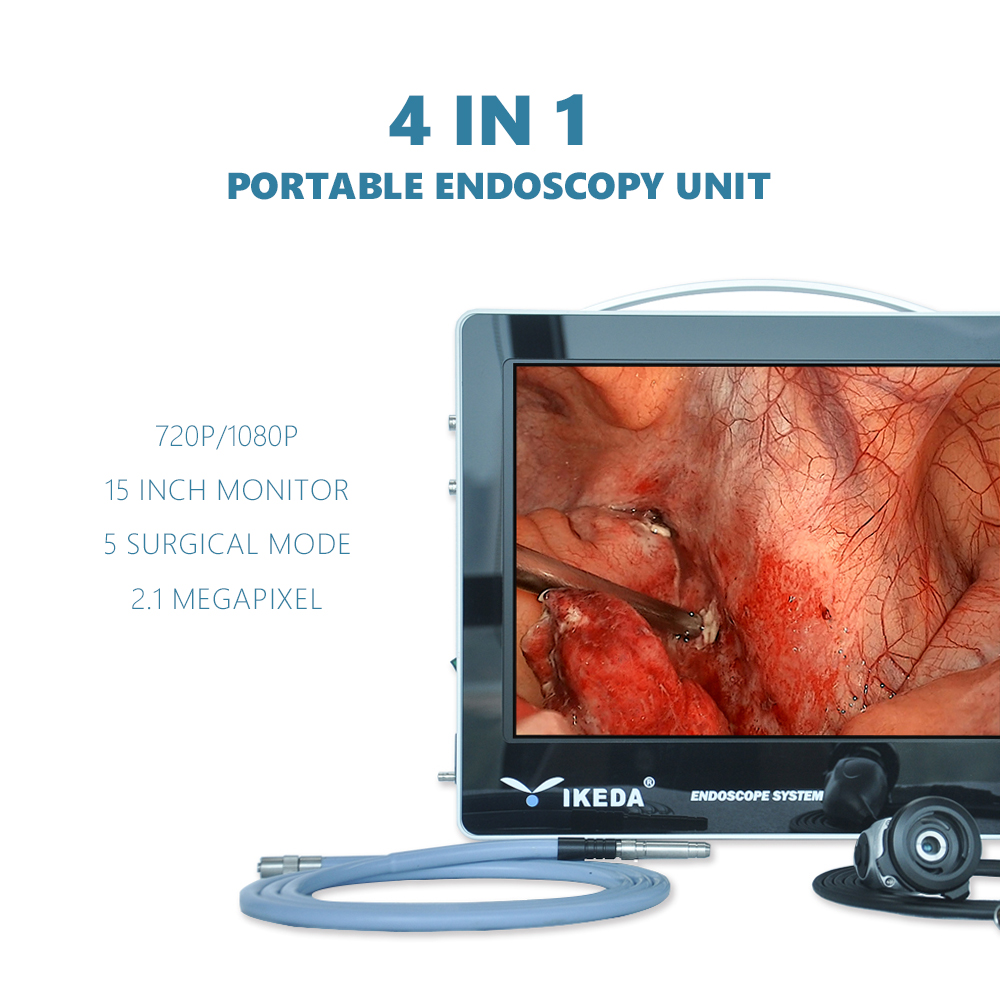

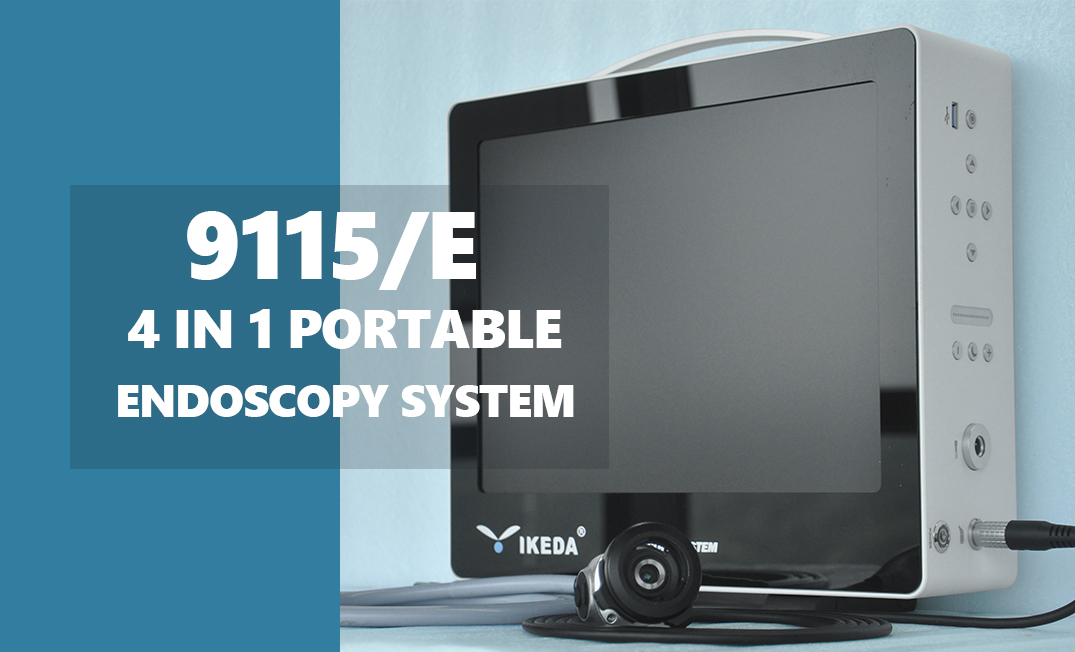

9115/E 4-in-1 endoscopic system is the ultimate in portability, allowing you to carry one case to your home to perform minimally invasive procedures on your patients.
It's small but includes a 15" medical monitor, video processor, a camera and a video recording device, plus a USB to record photos and videos.

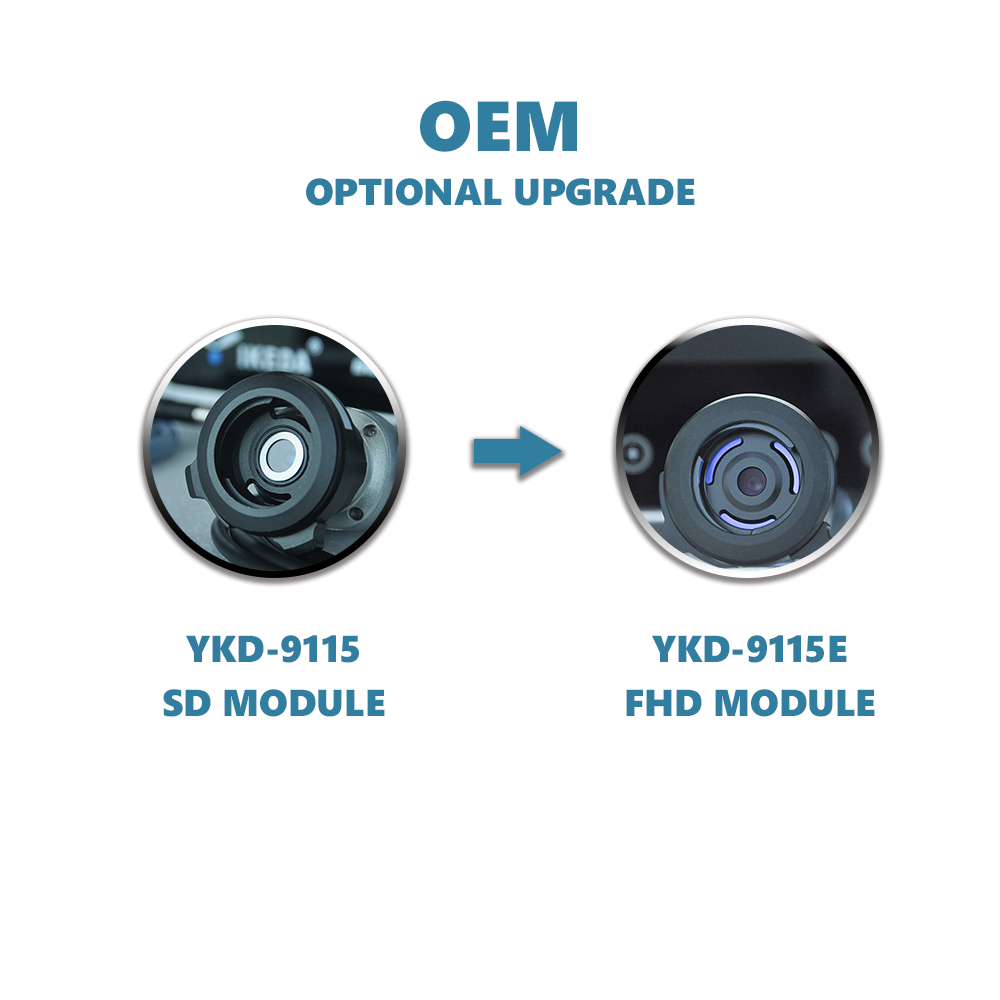

9115/E is a smaller version of the 9122 but the results are not much worse. It is available in SD and FHD versions, depending on your budget, and we are a manufacturer and guarantee that the machine will reach you in perfect condition!

Email

Download

Products Description

Item ID	YKD-9115/E
Camera	1/2.8 /Inch Full HD SONY CMOS, 1/3 Inch SONY CMOS
Image Size	1920x1080P/1305*977
Frame rate	(1920x1080)60fps
Scanning System	Progressive scanning
Pixels	2,100,000 Pixels
Resolution	1080P/720P
LED Light Source	80W, Cold Light Source
Video Output	DVI, HDMI,CVBS
Minimum Illuminance	0.5LUX	Color Temperature	5100-7000K
Luminous Flux Value	≥800lm	Color Rendering Index	≥90
/Monitor	15 INCH	AC Input	AC100-240V 50/60HZ
Video Recording	Build-In USB	Weight	8kg
White Balance	AWB & MWB	Dimension(mm)	360105360
Camera Control	WB & Photo Capture	SNR	50dB, Tolerance 20%

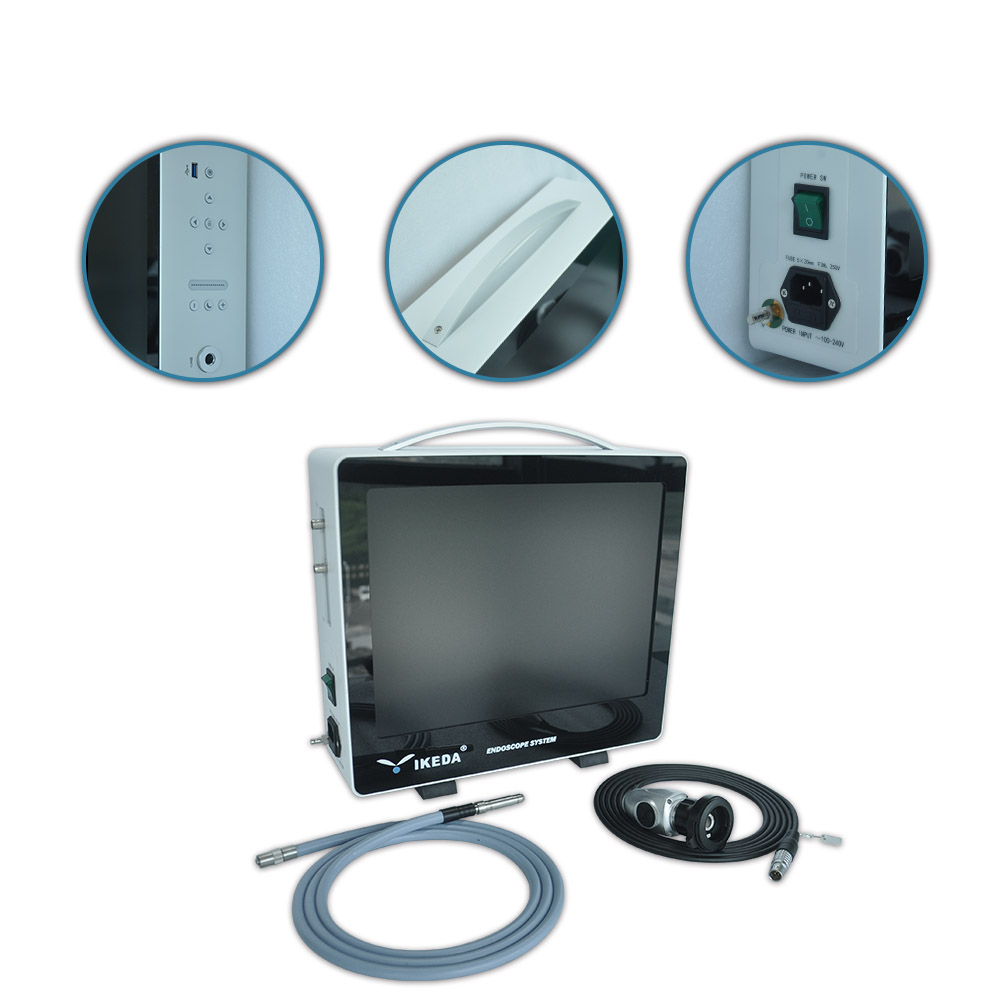

YKD-9115/E video system center combines the LED light source, camera, monitor and the processor in one box, defining a new way of simplicity in the OR. The intuitive touch panel with buttons enables easy and fast control with no interruption of the procedure.

4 in 1 : Camera 2.1MPixels+ LED light source + monitor+ HD recorder.

Medical Grade HD Monitor : 15 Inch

Built-in USB : FHD Imaging storage.
IPX8 Water Proof Camera: We always ensure high price performance.

Optional Extra Aluminum Crate : easy to carry and save shipping cost.

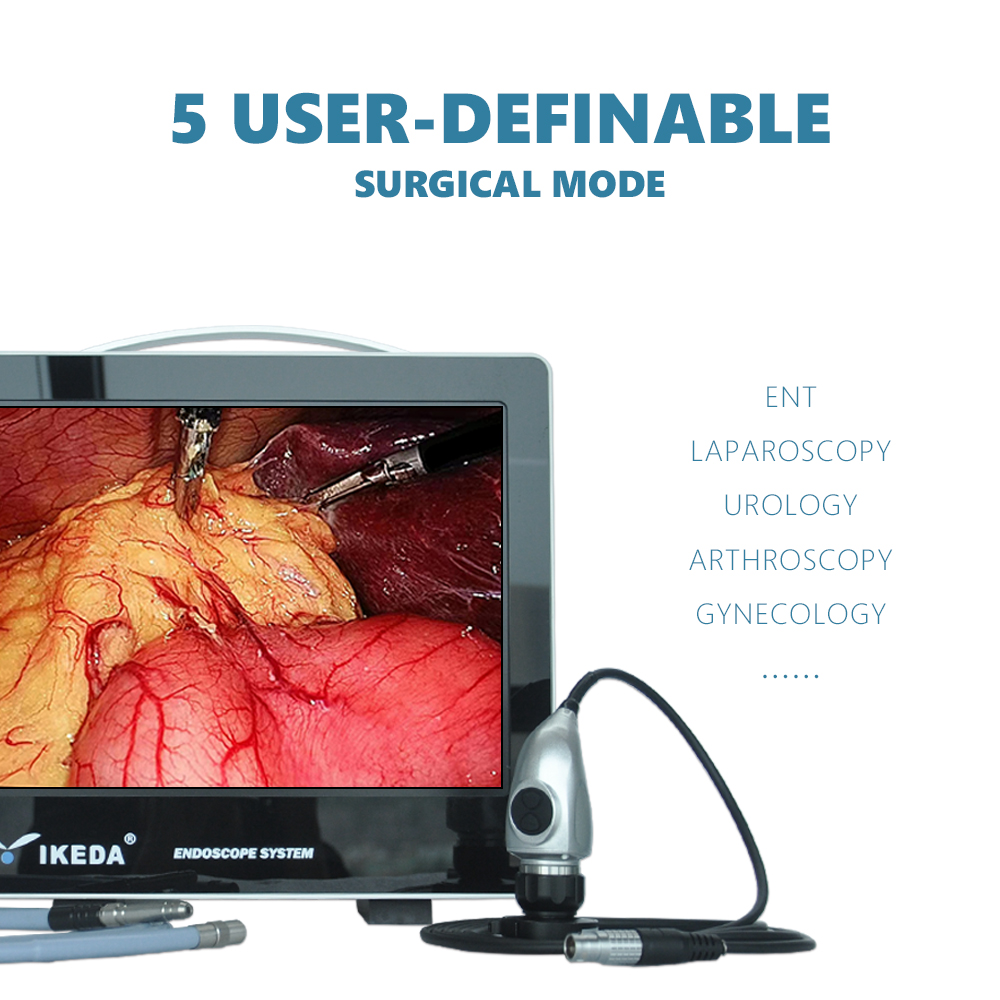

Easy to operate and functional : Including Operating room switching, white balance, hue, video, USB stick, noise reduction, brightness, sharpness, saturation, contrast, image gain, gamma settings, Zoom in/Out, screen freeze and flip, resolution, output frame rate, etc.

IKEDA imaging systems could be used for all fields in Hospital and Clinics, such as arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, proctoscope, sigmoidoscope, urology resectoscope, plastic surgery endoscope, laparoscope, ductoscopy, breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope, APP hernia repair, lacrimal passage, minimally invasive varicose veins, etc.
The camera is applied for both rigid and flexible fiberscopes, sucn as Sinuscope, Otoscope, Laryngoscope, Cystoscope, Arthroscope, Spine endoscope, hysteroscope, laparoscope...
The camera is fit for both diganosis and surgeries.

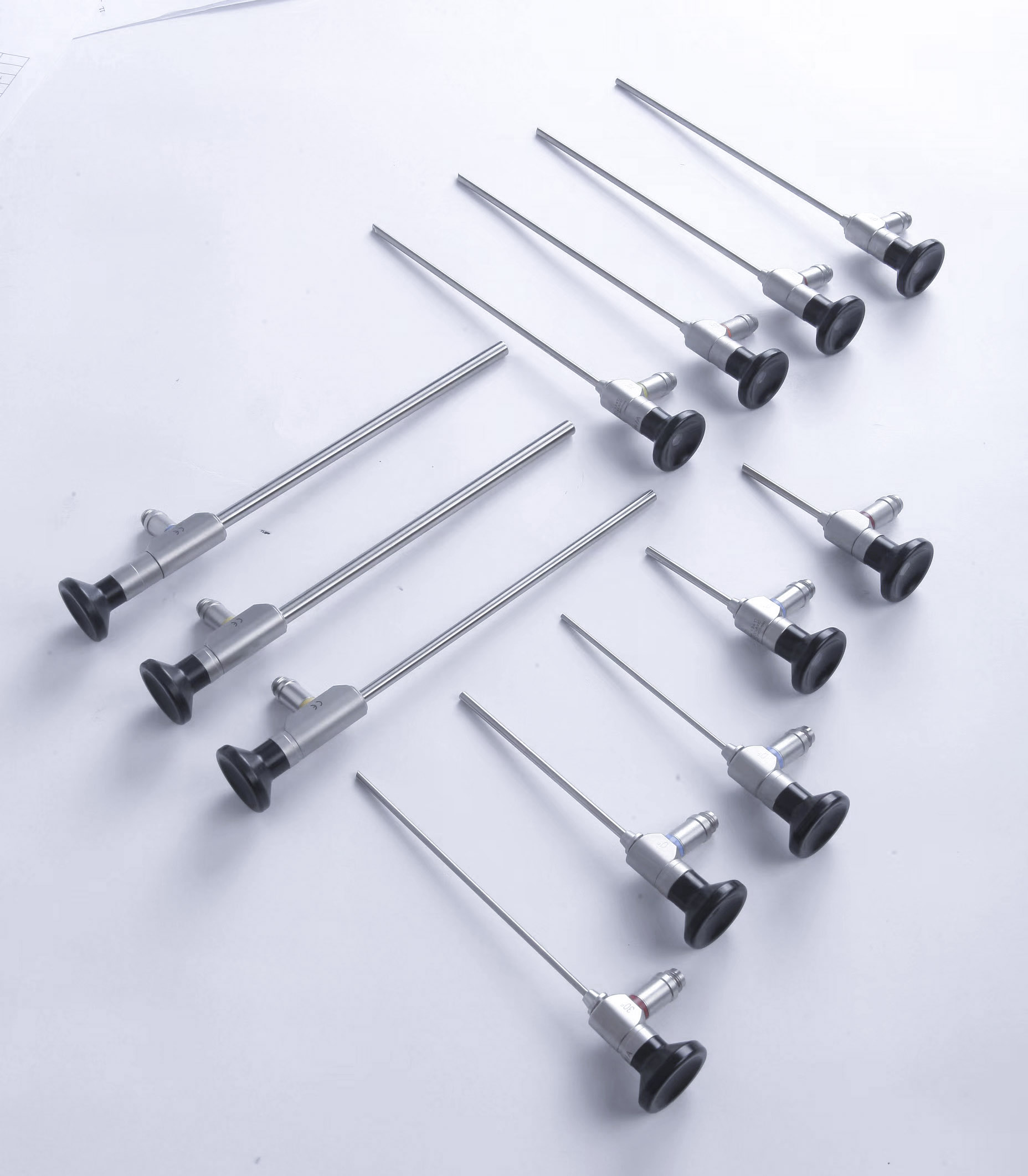

RIGID ENDOSCOPES

Adaptable to wide range of rigid endoscopes such as laparoscopes, hysteroscopes, cysteroscopes, arthroscopes, sinuscopes. We offer you High Magnification, High Definition, High Definition plus and 4K endoscopes.

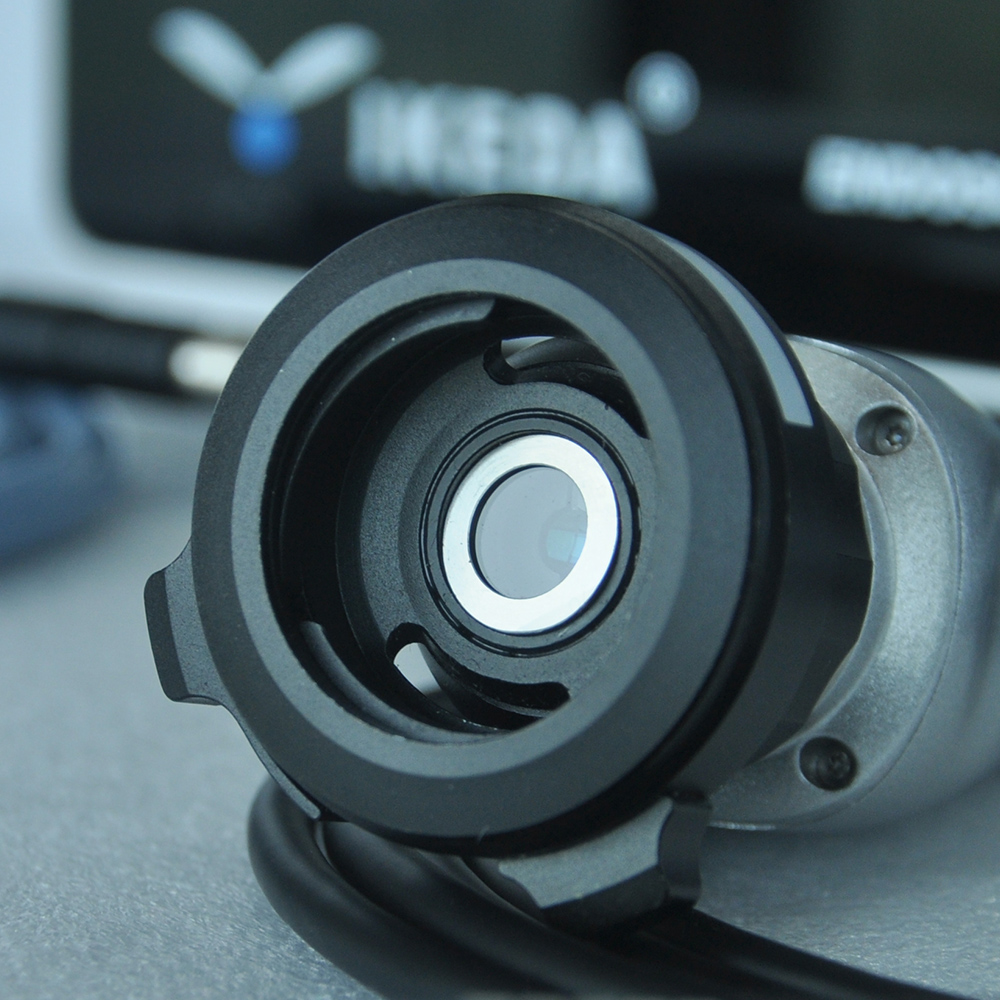

FULL HD CAMERA

We can define auto white balance as the adjustment that allows the camera to select the best white balance and color temperature settings for a given scene. IKEDA HD cameras are best at finding the correct white balance and

maximizing your clinic’s productivity at minimum costs.

THE ULTIMATE IN BRILLIANCE

Enjoy rich, accurate colours and deeper contrasts with crisp detail. The smallest colour differences are accurately reflected, providing clearer, richer and more realistic colours.

IKEDA is always trying to achieve laparoscopic visibility that is equivalent to open surgery by providing HD video imaging systems with advanced technologies.
They introduce a range of new, easy-to-use technologies that aim to revolutionize the way medical disorders can be detected, characterized and sampled. We want to support every endoscopist. In every procedure. Every day.
